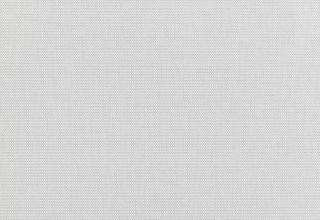

Fabric properties
Semi transparent
35% Polyester, 65% PVC, aluminium backed
320 g/m²
0.45 mm
240 cm
245 cm
Features / Technical properties
8
Flame retardant

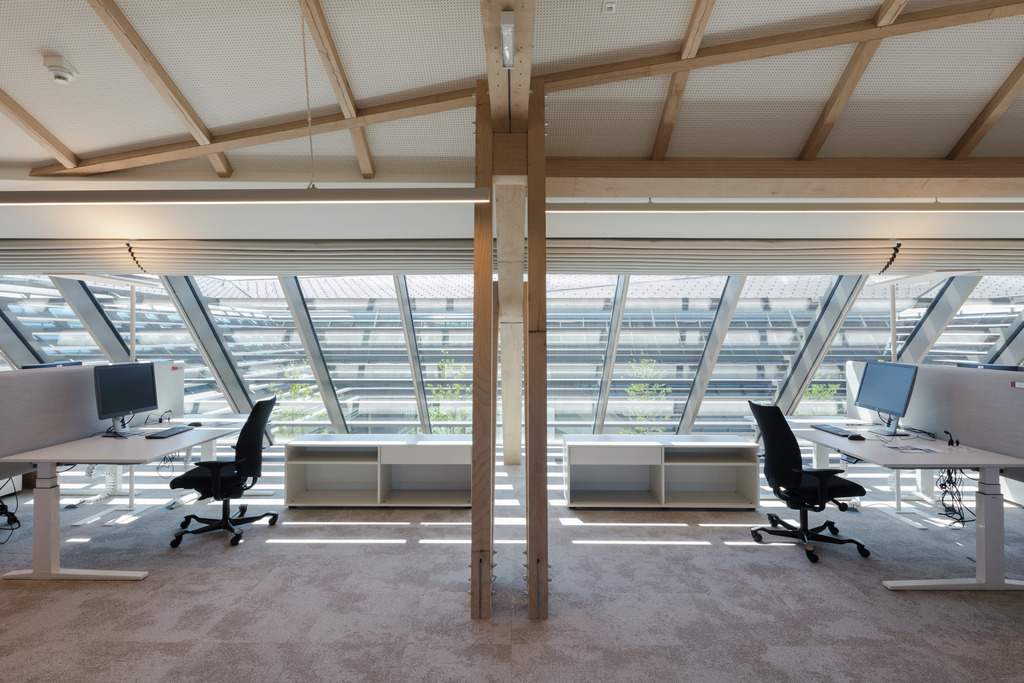

Optimised for workstations
Low heat transmittance
Antimicrobial (ASTM - SGS)
Applicable in humid areas
Oeko-Tex
Special colours from 1’200 m
Weldable
Washing instructions
Optical and solar coefficients (± 5%, DIN EN 410)
Colour |
|
|
|
|
|
|
|
---|---|---|---|---|---|---|---|

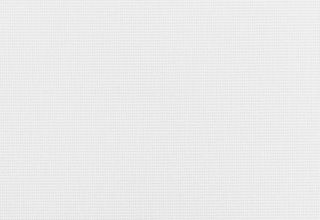

Colour 01 | Tv(%) 4.0 | Ts(%) 4.0 | Rs(%) 72.0 | As(%) 24.0 | Tuv(%) 2.0 | Fc() 0.46 | gtot() 0.33 |

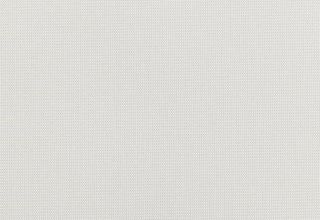

Colour 02 | Tv(%) 4.0 | Ts(%) 4.0 | Rs(%) 71.0 | As(%) 25.0 | Tuv(%) 3.0 | Fc() 0.47 | gtot() 0.34 |
Colour 03 | Tv(%) 5.0 | Ts(%) 3.0 | Rs(%) 72.0 | As(%) 25.0 | Tuv(%) 5.0 | Fc() 0.46 | gtot() 0.33 |

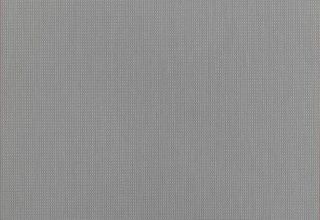

Colour 04 | Tv(%) 4.0 | Ts(%) 4.0 | Rs(%) 70.0 | As(%) 26.0 | Tuv(%) 3.0 | Fc() 0.47 | gtot() 0.34 |

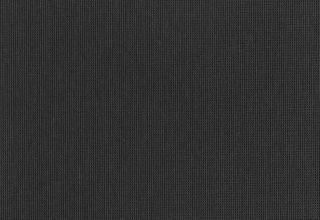

Colour 05 | Tv(%) 4.0 | Ts(%) 4.0 | Rs(%) 72.0 | As(%) 24.0 | Tuv(%) 4.0 | Fc() 0.46 | gtot() 0.33 |
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1
Downloads
On request:
Class 1 (UNI 8456)
On request:
ASTM
